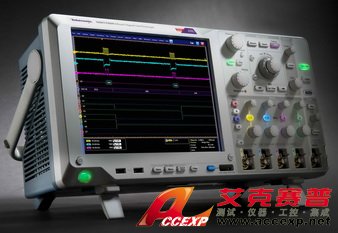

Tektronix MSO5204 帶寬2GHz示波器
名稱：示波器
品牌：
型號：
簡介：Tektronix MSO5204示波器自動觸發、解碼和搜索功能，迅速調試常見串行總線– I2C, SPI, RS-232/422/485/UART, USB2.0。專有的FastAcq™技術，迅速發現毛刺和偶發事件...
申請服務
- 產品介紹
Tektronix MSO5204示波器自動觸發、解碼和搜索功能，迅速調試常見串行總線– I2C, SPI, RS-232/422/485/UART, USB2.0。
專有的FastAcq™技術，迅速發現毛刺和偶發事件。>250,000波形/秒的最大捕獲速率，快速顯示難檢異常事件。
Tektronix MSO5204示波器53種自動測量、測量統計、直方圖和高級波形數學運算，分析設備。
簡便地搜索、標記和導航長記錄長度，找到事件發生的所有時點。
Tektronix MSO5204示波器自動觸發、解碼和搜索功能，迅速調試并行總線。高達60.6 ps的定時分辨率，捕獲快速跳變。
350多種觸發組合，包括建立時間/保持時間觸發、串行數據包觸發和并行數據觸發，迅速捕獲異常信號。
Tektronix MSO5204示波器標配抖動和眼圖分析及十幾種電源分析、存儲器分析等選配軟件包，把示波器轉換成專用應用儀器。
標配4只探頭，提供了4pF電容負荷，保證準確測量。
Tektronix MSO5204示波器在一臺儀器上分析模擬信號和數字信號，在系統級調試復雜的設計。
| Vertical System Analog Channels | |||
| Input Channels | Analog Bandwidth (–3 dB): | 2 GHz | |
| Calculated Rise Time: | 175 ps | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Bandwidth Limits | Depending on instrument model: 1GHz, 500MHz, 350MHz, 250MHz, and 20MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 M? ±1%, 50 ? ±1% | ||
| Input Sensitivity | 1 M?: 1 mV/div to 10 V/div 50 ?: 1 mV/div to 1 V/div | ||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 M? | 300 VRMS CAT II, with peaks ≤ ±425 V For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMS at 1 MHz, 10 dB/decade above 1 MHz For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMS at 30 MHz, 10 dB/decade above 30 MHz | ||
| Max Input Voltage, 50 ? | 5 VRMS, with peaks ≤ ±20 V | ||
| Position Range | ±5 divisions | ||
| Delay between any Two Channels (Typical) | ≤100 ps (50 ?, DC coupling and equal V/div at or above 10 mV/div) | ||
| Offset Range | |||
| Range | 1M? | 50? | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Offset Accuracy | ±(0.005 × |offset – position| + DC Balance) Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term | ||
| Channel-to-Channel Isolation (Any two channels at equal Vertical Scale settings) (Typical) | ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW | ||
| Vertical System Digital Channels | |||
| Input Channels | 16 Digital (D15 - D0) | ||
| Thresholds | Per-channel Thresholds | ||
| Threshold Selections | TTL, ECL, User | ||
| User-defined Threshold Range | ±40V | ||
| Maximum Input Voltage | ±42Vpeak | ||
| Threshold Accuracy | ±(100 mV + 3% of threshold setting) | ||
| Input Dynamic Range | 30 Vp-p ≤200 MHz 10 Vp-p >200 MHz | ||
| Minimum Voltage Swing | 400 mV | ||
| Input Impedance | 100 k? | ||
| Probe Loading | 3 pF | ||
| Vertical Resolution | 1 bit | ||
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 5 GS/s | ||
| Maximum Sample Rate (1 or 2 channels) | 10 GS/s | ||
| Maximum Record Length (All channels) | Standard Config. | 12.5M points | |
| With Option 2RL | 25M | ||
| With Option 5RL | 50M | ||
| With Option 10RL | 125M | ||
| Maximum Equivalent Time Sampling Rate | 400 GS/s | ||
| Maximum Duration at Highest Sample Rate | 25 ms | ||
| Time Base Range | 250 ps/div to 1000 s/div | ||
| Time Resolution (in ET/IT mode) | 2.5 ps/div | ||
| Time Base Delay Time Range | –5 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±75 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
| Trigger Jitter (RMS) | ≤10 psRMS for Edge trigger type ≤100 psRMS for all Non-edge trigger types | ||
| Horizontal System Digital Channels | |||
| Maximum Sample Rate (Main) | 500 MS/s (2 ns resolution) | ||
| Maximum Record Length (Main) | 12.5M Standard Up to 40M with Record Length options | ||
| Maximum Sample Rate (MagniVu) | 16.5 GS/s (60.6 ps resolution) | ||
| Maximum Record Length (MagniVu) | 10k points centered around the trigger | ||
| Minimum Detectable Pulse Width (Typical) | 1ns | ||
| Channel-to-Channel Skew (Typical) | 200 ps | ||
| Maximum Input Toggle Rate | 500 MHz at minimum input swing; higher toggle rates can be achieved at higher amplitudes | ||
