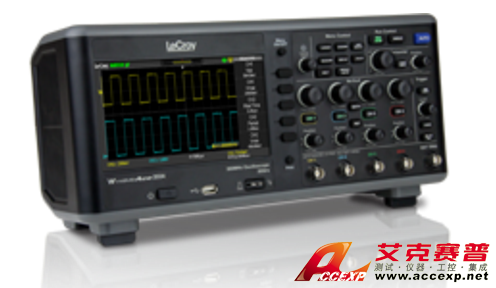

美國力科LECROY WaveAce 1000和2000示波器
名稱：示波器
品牌：
型號：
簡介：美國力科LECROY WaveAce 1000和2000示波器 he WaveAce combines long memory, a wide screen display, extensive measurement capabiliti...
申請服務
- 產品介紹
he WaveAce combines long memory, a wide screen display, extensive measurement capabilities, advanced triggering and great connectivity to improve trouble shooting and shorten debug time。
| 美國力科LECROY WaveAce 1000和2000示波器 (40 MHz Bandwidth, 2 Input Channels, 1 GS/s (interleaved), 500 MS/s (all channels) Max Sample Rate) | |
| Bandwidth | 40 MHz |
| Single-Shot Sample Rate/Ch | 1 GS/s on 1 Ch |
| 500 MS/s on 2 Ch | |
| Memory | 2 Mpt/Ch on 1 Ch |
| 1 Mpt/Ch on 2 Ch | |
| Input Channels | 2 |
| 美國力科LECROY WaveAce 1000和2000示波器 (60 MHz Bandwidth, 2 Input Channels, 1 GS/s (interleaved), 500 MS/s (all channels) Max Sample Rate) | |
| Bandwidth | 60 MHz |
| Single-Shot Sample Rate/Ch | 1 GS/s on 1 Ch |
| 500 MS/s on 2 Ch | |
| Memory | 2 Mpt/Ch on 1 Ch |
| 1 Mpt/Ch on 2 Ch | |
| Input Channels | 2 |
| 美國力科LECROY WaveAce 1000和2000示波器(100 MHz Bandwidth, 2 Input Channels, 1 GS/s (interleaved), 500 MS/s (all channels) Max Sample Rate) | |
| Bandwidth | 100 MHz |
| Single-Shot Sample Rate/Ch | 1 GS/s on 1 Ch |
| 500 MS/s on 2 Ch | |
| Memory | 2 Mpt/Ch on 1 Ch |
| 1 Mpt/Ch on 2 Ch | |
| Input Channels | 2 |
| Bandwidth | 70 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 1 Ch |
| 12 kpts/ch on 2 Ch | |
| Input Channels | 2 |
| Bandwidth | 70 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 2 Ch |
| 12 kpts/ch on 4 Ch | |
| Input Channels | 4 |
| 美國力科LECROY WaveAce 1000和2000示波器 (100 MHz Bandwidth, 2 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 100 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 1 Ch |
| 12 kpts/ch on 2 Ch | |
| Input Channels | 2 |
| 美國力科LECROY WaveAce 1000和2000示波器 (100 MHz Bandwidth, 4 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 100 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 2 Ch |
| 12 kpts/ch on 4 Ch | |
| Input Channels | 4 |
| 美國力科LECROY WaveAce 1000和2000示波器(200 MHz Bandwidth, 2 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 200 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 1 Ch |
| 12 kpts/ch on 2 Ch | |
| Input Channels | 2 |
| 美國力科LECROY WaveAce 1000和2000示波器 (200 MHz Bandwidth, 4 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 200 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 2 Ch |
| 12 kpts/ch on 4 Ch | |
| Input Channels | 4 |
| WaveAce 2032 (300 MHz Bandwidth, 2 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 300 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 1 Ch |
| 12 kpts/ch on 2 Ch | |
| Input Channels | 2 |
| 美國力科LECROY WaveAce 1000和2000示波器 (300 MHz Bandwidth, 4 Input Channels, 2 GS/s (interleaved), 1 GS/s (all channels) Max Sample Rate) | |
| Bandwidth | 300 MHz |
| Single-Shot Sample Rate/Ch | 2 GS/s on 1 Ch |
| 1 GS/s on 2 Ch | |
| Memory | 24 kpts/Ch on 2 Ch |
| 12 kpts/ch on 4 Ch | |
| Input Channels | 4 |
| 美國力科LECROY WaveAce 1000和2000示波器主要指標 | |
| 帶寬 | 40 MHz - 300 MHz |
| 標準內存 | 12 kpts - 1 Mpts |
| 最大存儲深度 | 2 Mpts |
| 最大采樣率 | 2 GS/s |
